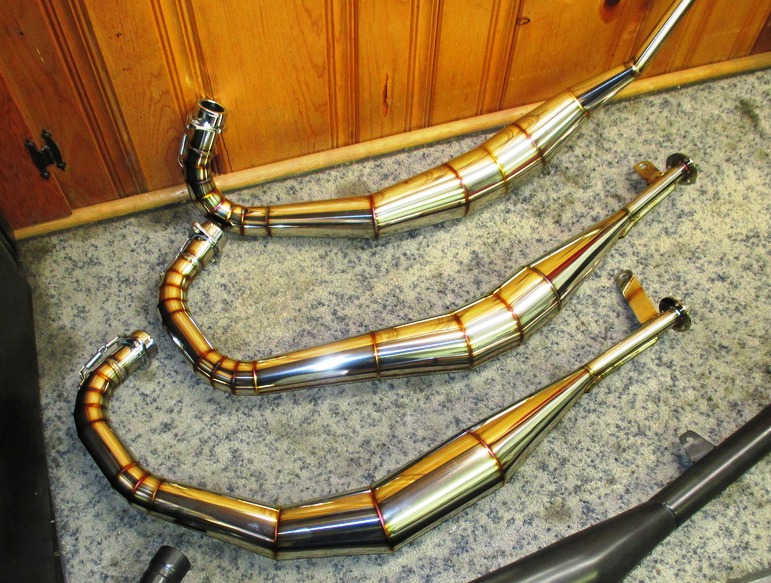

K2TEC Chambers
H2 type2

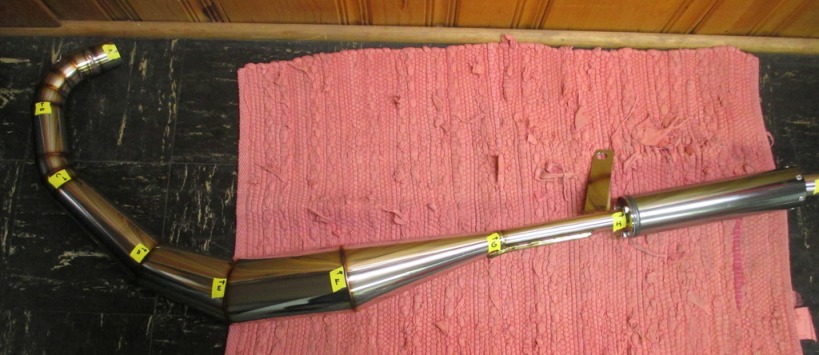

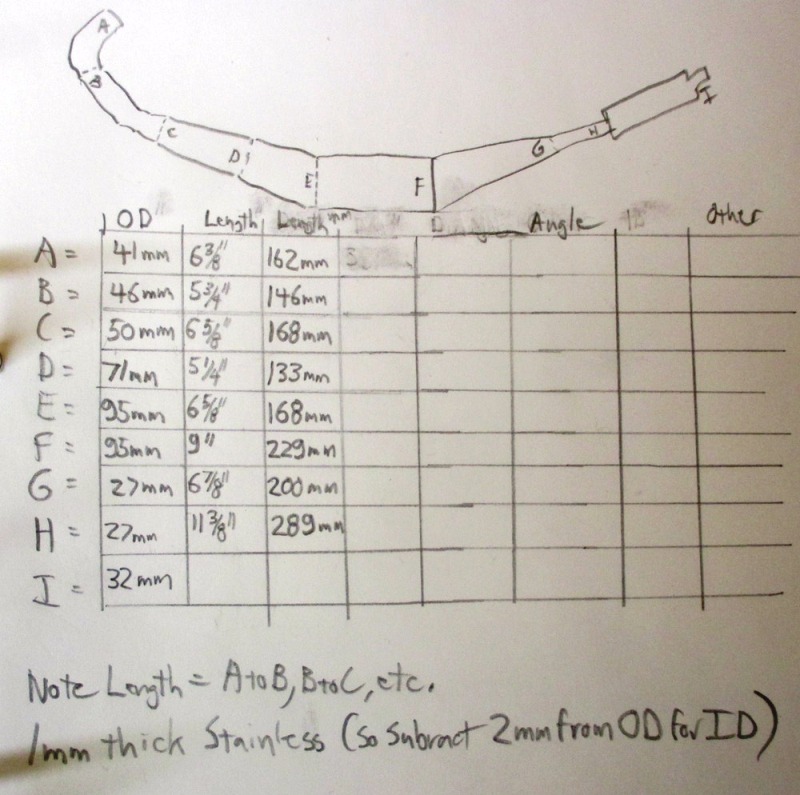

| OD | Length |
| A=41mm | 162mm (to B) start headpipe |
| B=46mm | 146mm (to C) tapered header |
| C=50mm | 168mm (to D) tapered header, 1st diffuser |
| D=71mm | 133mm (to E) start 2nd diffuser cone |
| E=95mm | 168mm (to F) belly section |
| F=95mm | 229mm (to G) baffle cone |
| G=27mm | 200mm (to H) stinger |
| H=27mm | 289mm silencer can |
| I =32mm | end of silencer tip |
