Controls ID

-The H1 controls are pictured but other models should be the same for a like year.
-Controls pictured are US version.
-Euro versions include PO & Pass switch positions and are wired accordingly.
-Although late model RH controls for points & CDI models are visually the same
they are wired differently and are NOT interchangeable.



69 - 72 H1/A/C

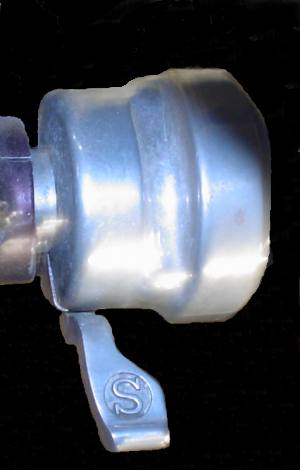

1972 H1B

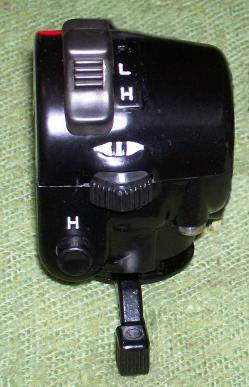

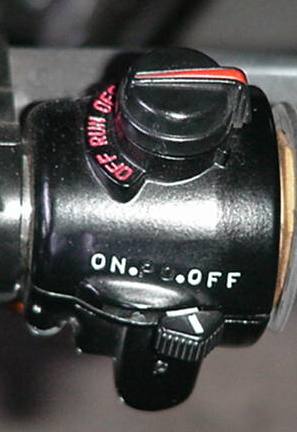

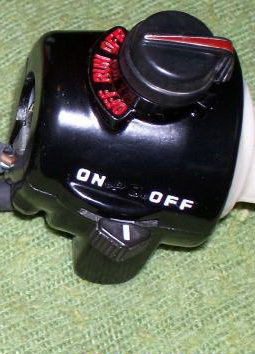

1973 - 1974 H1D/H1E

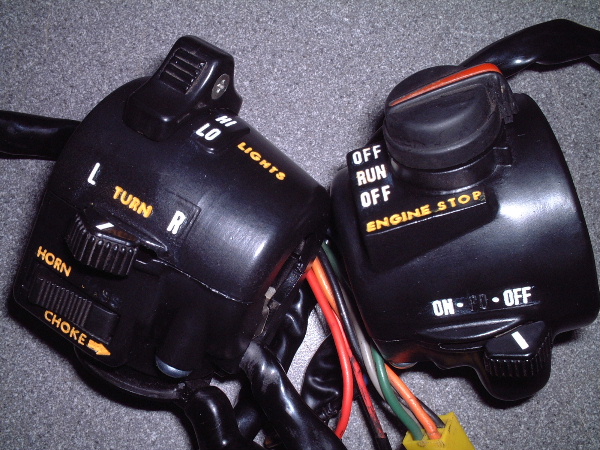

1975 - 1976 H1F & KH500*



* '76 KH had  "Squared off" kill sw
