some
H1d/h1e differences
here is the difference in color between
the H1d & H1e.
H1d cover is on the left, paint code
"77". "capacitor discharge ignition" is written in black.
CLICK ON PICTURE FOR FULL SIZE IMAGE
H1e cover is on the right, paint code "1Y" & the writing is in GREEN.
here is the difference between the h1d & h1e
fuel tanks:
(only paint)
photo is courtesy of RB.
This is the difference between the h1d & h1e Swing
Arm:
h1d
h1e/F

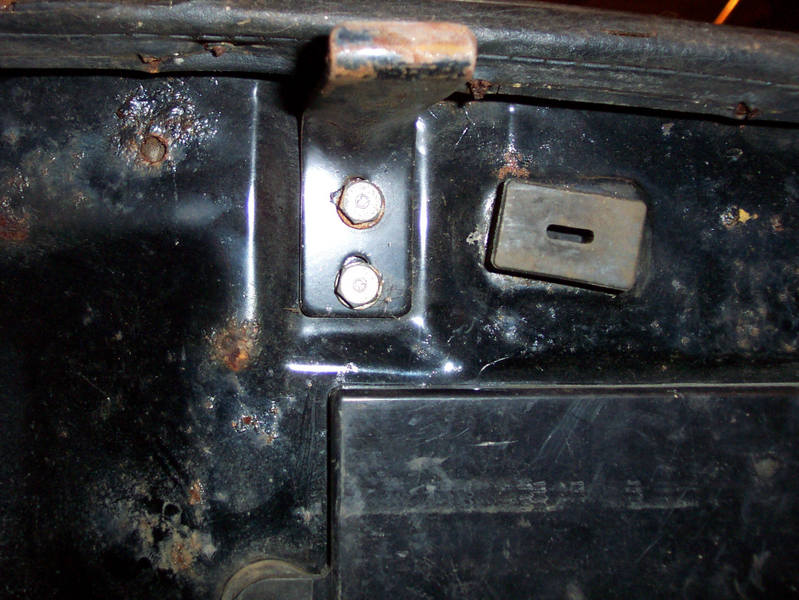

H1D & E seat latches are different:
h1d h1e/F
The H1D chainguard is black where the later H1's are chrome.
