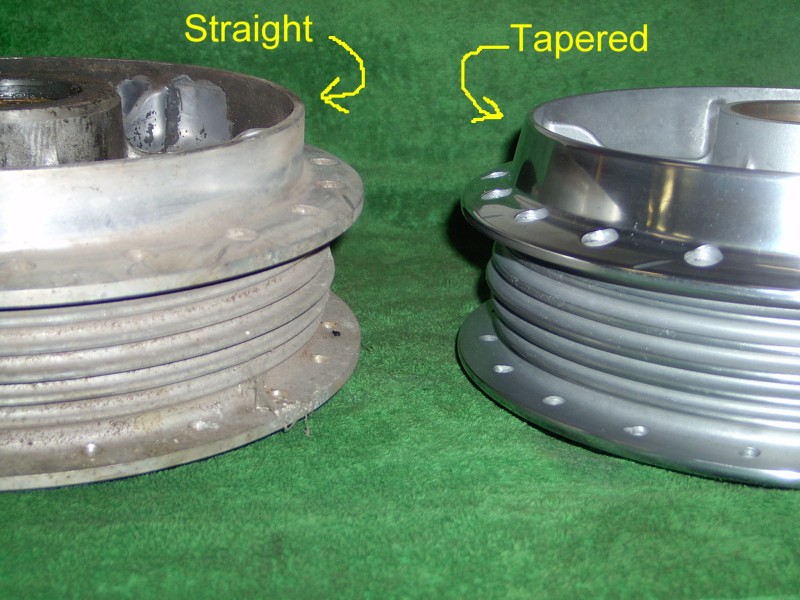

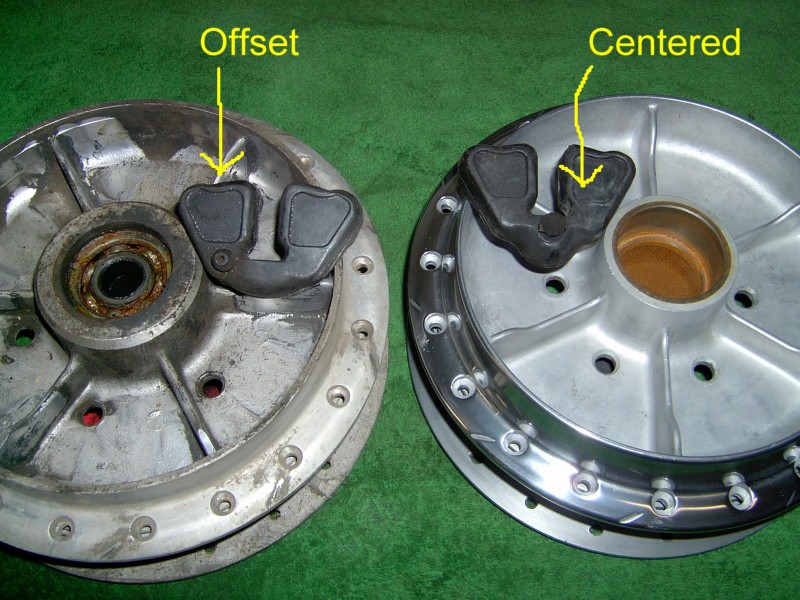

Differences in H2 rear hubs. Early (H2/A) on right, Late H2B/C on left .
Late H2 hub is the same as Z1. Early and late hubs are interchangeable. -

H2B/C                                                                                            H2/A

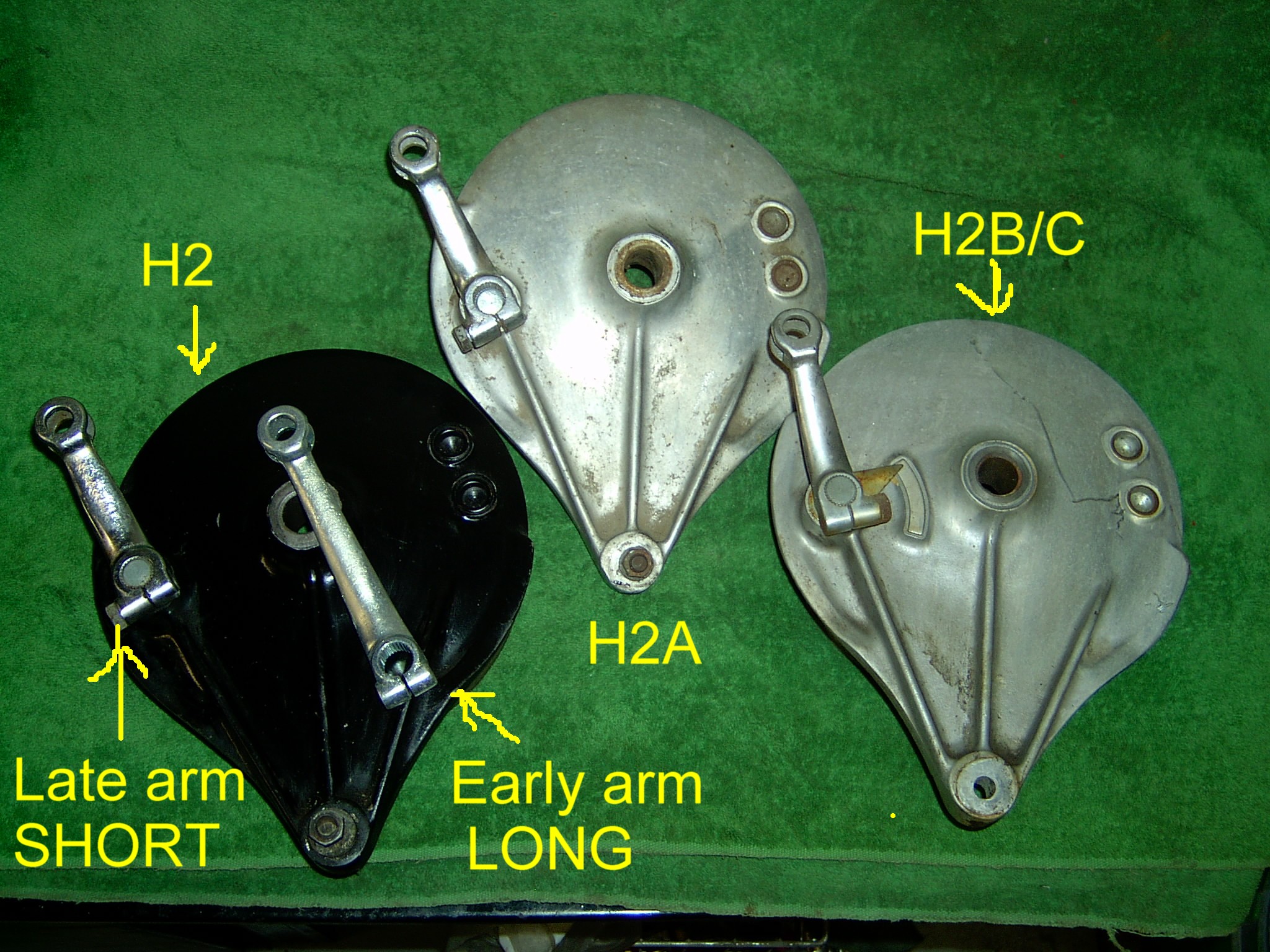

H2 and H2A rear brake plates are the same except that the 72 plate is painted black (semi gloss).
Early 72 H2 had the LONG arm AND a long arm at the pedal end.
Late 72 and all
73 had the short arm AND short arm at the pedal end.

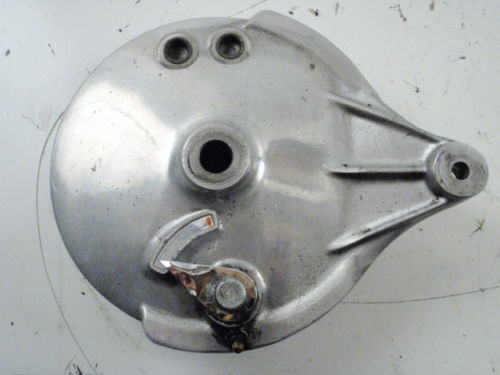

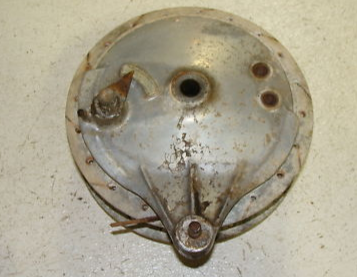

H1E/F KH500

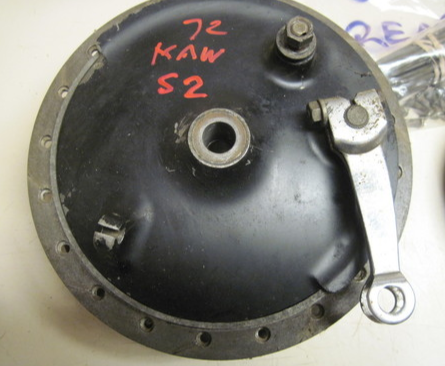

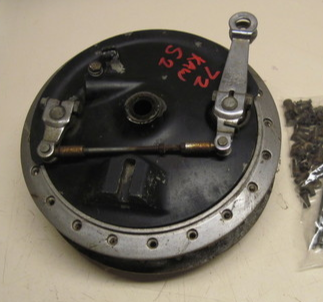

S1/S2 Front

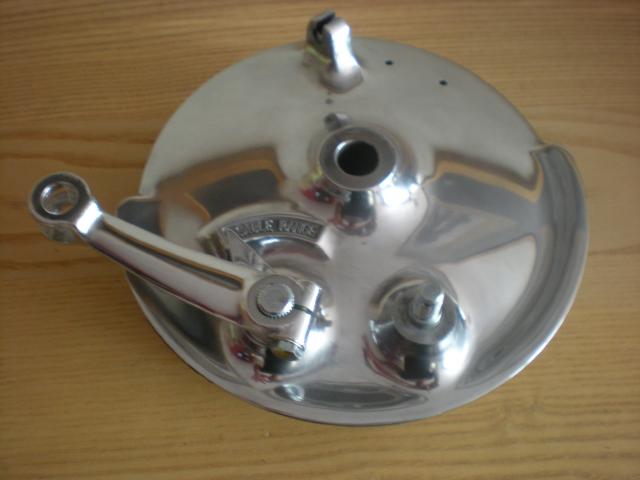

Late S Series

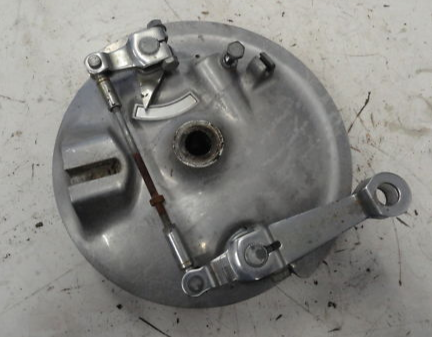

Late S Front (w/o Disc)
