Triple John's option for cylinder removal...
1) Partially tap all four stud holes with a 5/8" tap. Do not tap
all the way! just 1/2"-3/4" to get the bolt started. You will need all the
thread strength you can get. The bolts will pull out VERY easily if you tap all
the way down.
2) Soak cylinder
with WD40 or PB Blaster, heat
cylinder a
little while, then turn ALL four bolts 1/4 turn at a time. Make sure you tap on
cylinder lightly
to help things along. Once you get the
cylinder to lift
1/4" or make sure you tap
cylinder back
down onto the case, and start over. This will take a while, but it will work.

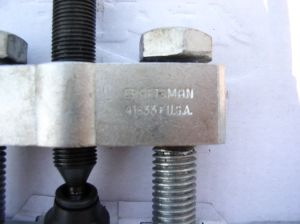

3) Once you have the
cylinder freely moving on the studs now is the time to use the piston
removal tool. Drop a small piece of 3" round 3/8" plywood into the bore. This
will keep the center of the tool from moving around in the bore, and also
protect the piston from being damaged.

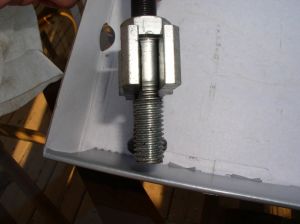

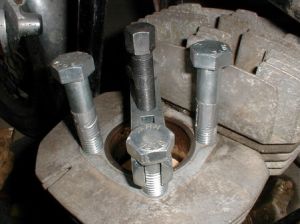

4) Thread the two slotted bolts into the
cylinder as far
as you can, and slide the puller into the bolts. Make sure that both bolts are
at the same height, and the puller is centered in the
cylinder.
5) Start turning the puller bolt clockwise until you make contact with the
piston. Once you make contact give it a half to one turn, and apply penetrant,
and heat. Let it sit for 5-10 minutes give it another turn apply penetrant, and
heat.....Be Patient it will break loose!
