H1/2 Fork Ear ID

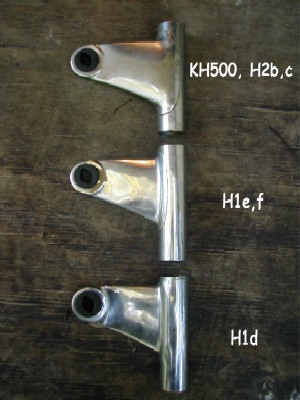

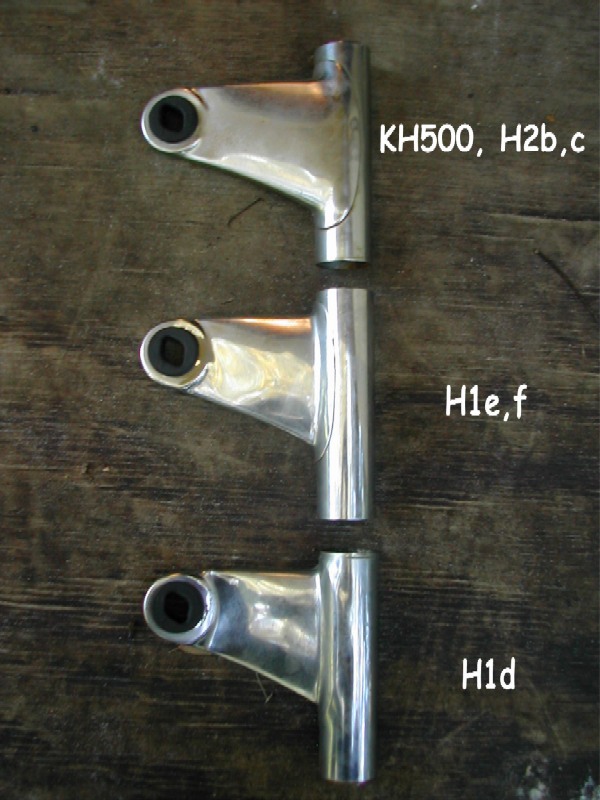

The KH500 had the large headlight (like the H2). KH500, H2B, & H2C all use the same ears: 44033-068 left, 44034-068 right.

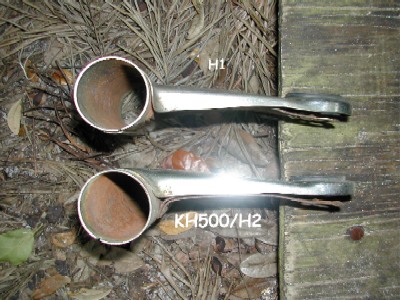

The H1 E/F used : 44033-069 left, 44034-069 right.  The difference is the mounting position of the "tabs". The KH/H2 tabs are slightly further apart to accommodate the larger headlight.

The H1D used: 44033-055 left, 44034-055 right.  These are the same as the E/F except it has "blended seams"

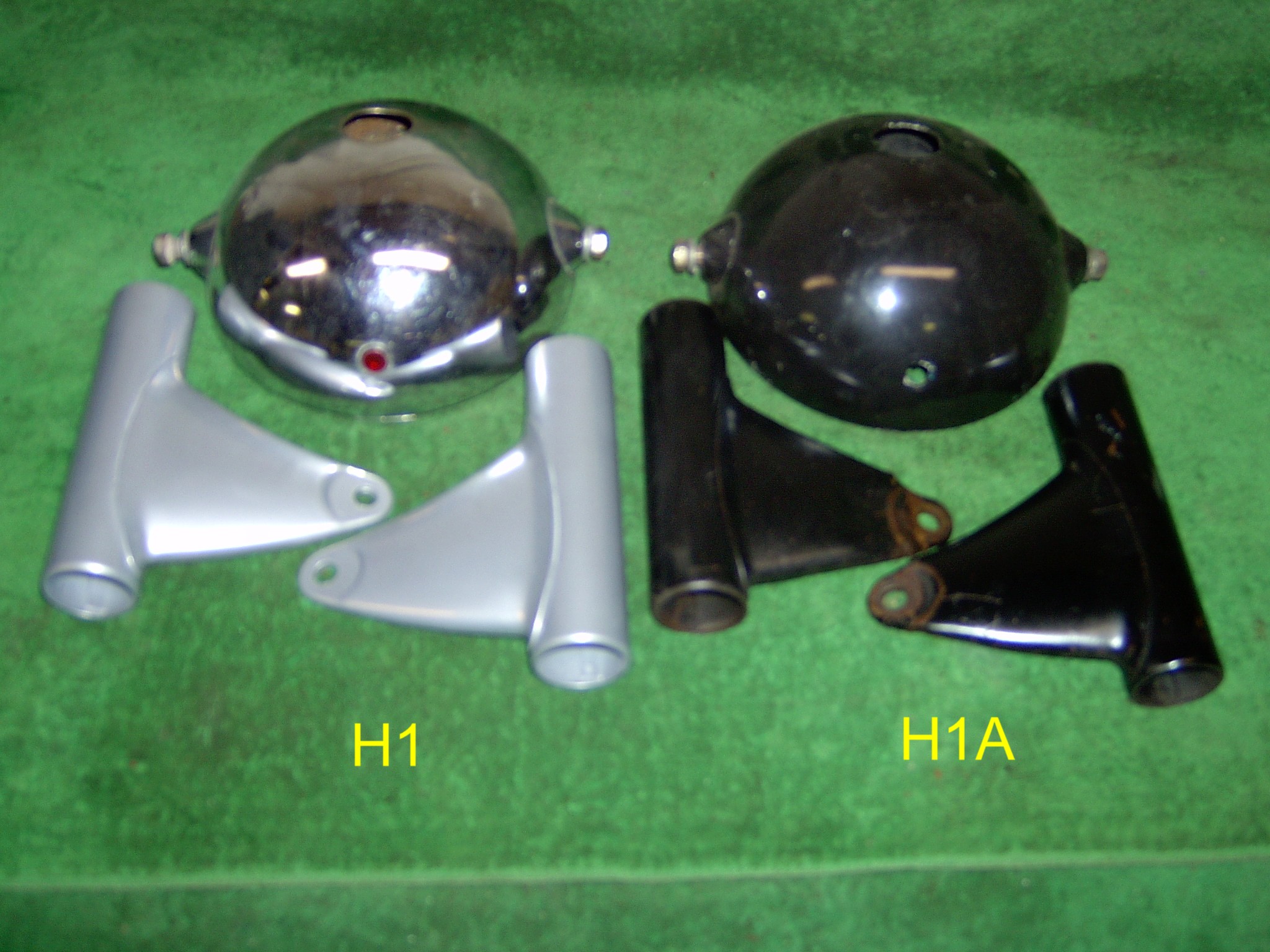

Early H1

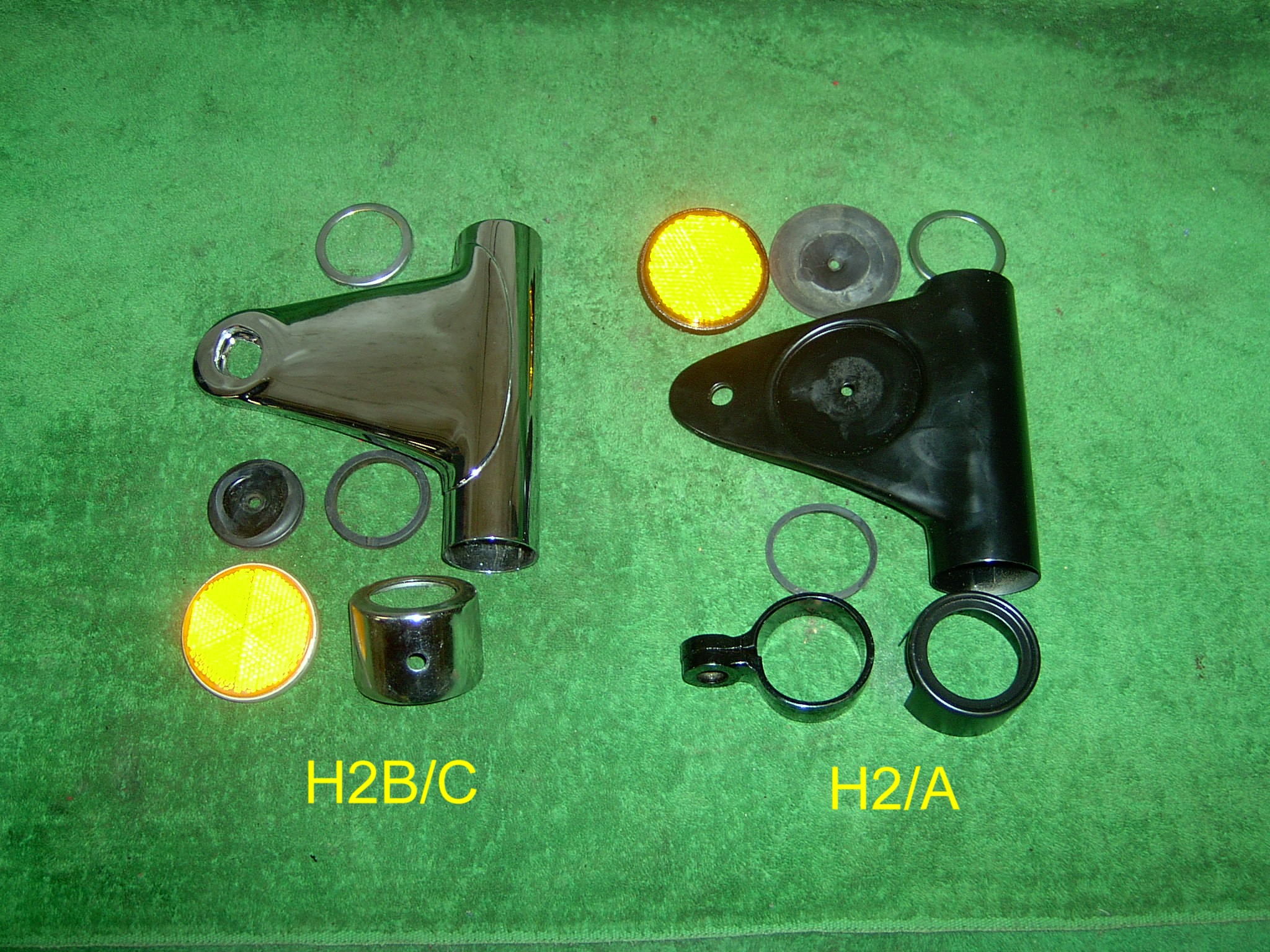

H2

S1 & S2 EURO

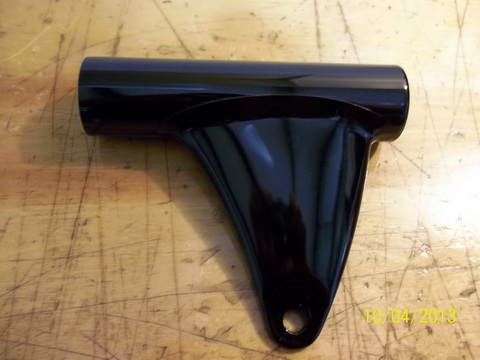

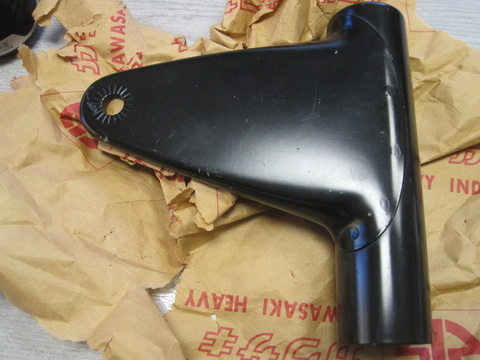

44033-037-21 LH                                44034-036-21 RH

S1A/B/C KH250A5

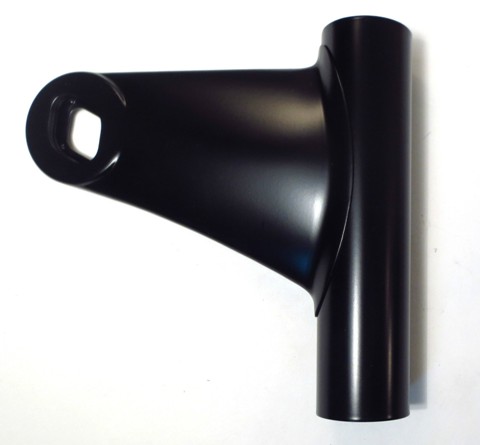

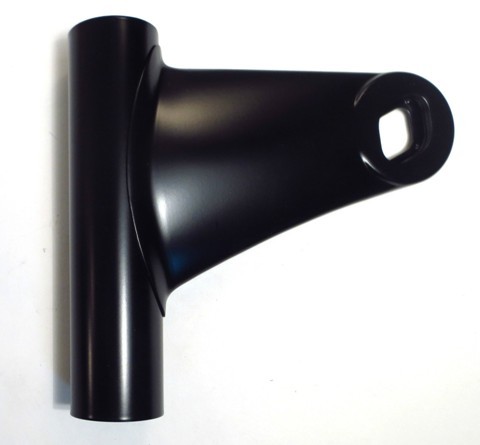

44033-054-021 LH                      44034-054-021 RH

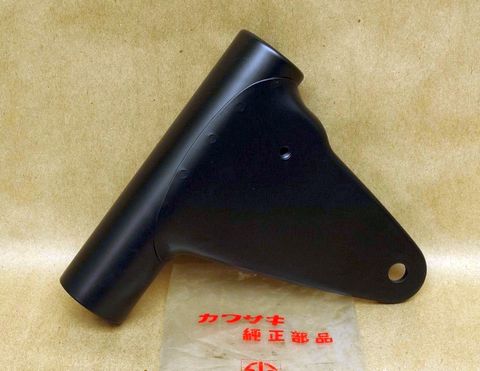

S2 (Reflector Hole)

44033-038-21 LH                           44034-037-21 RH

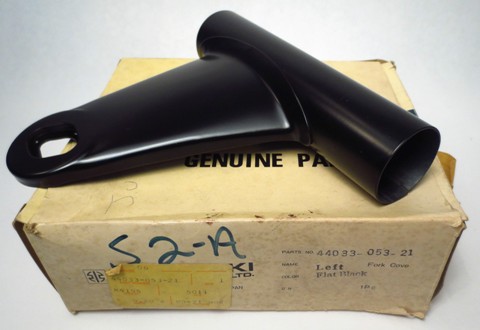

S2A

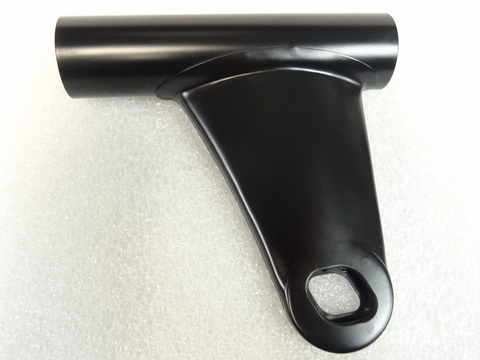

44033-053-021 LH                  44034-053-021 RH

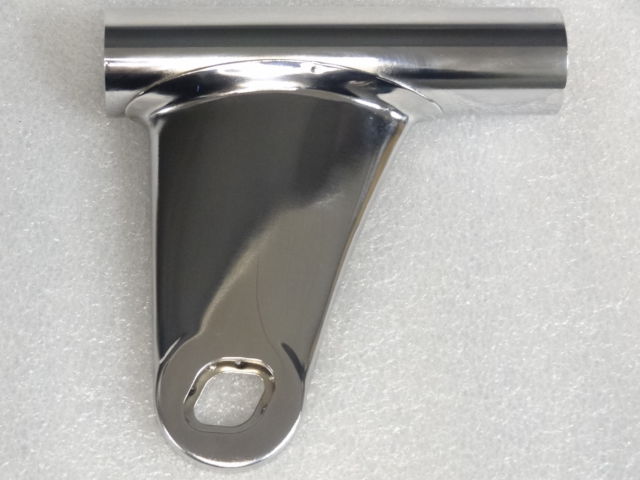

S3/A KH

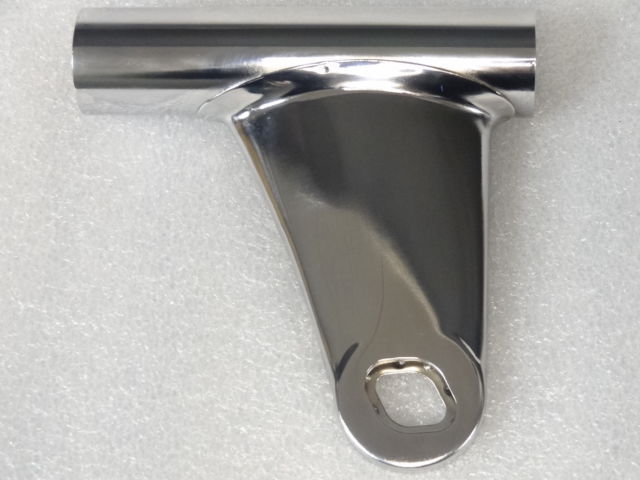

44033-067 LH                            44034-067 RH

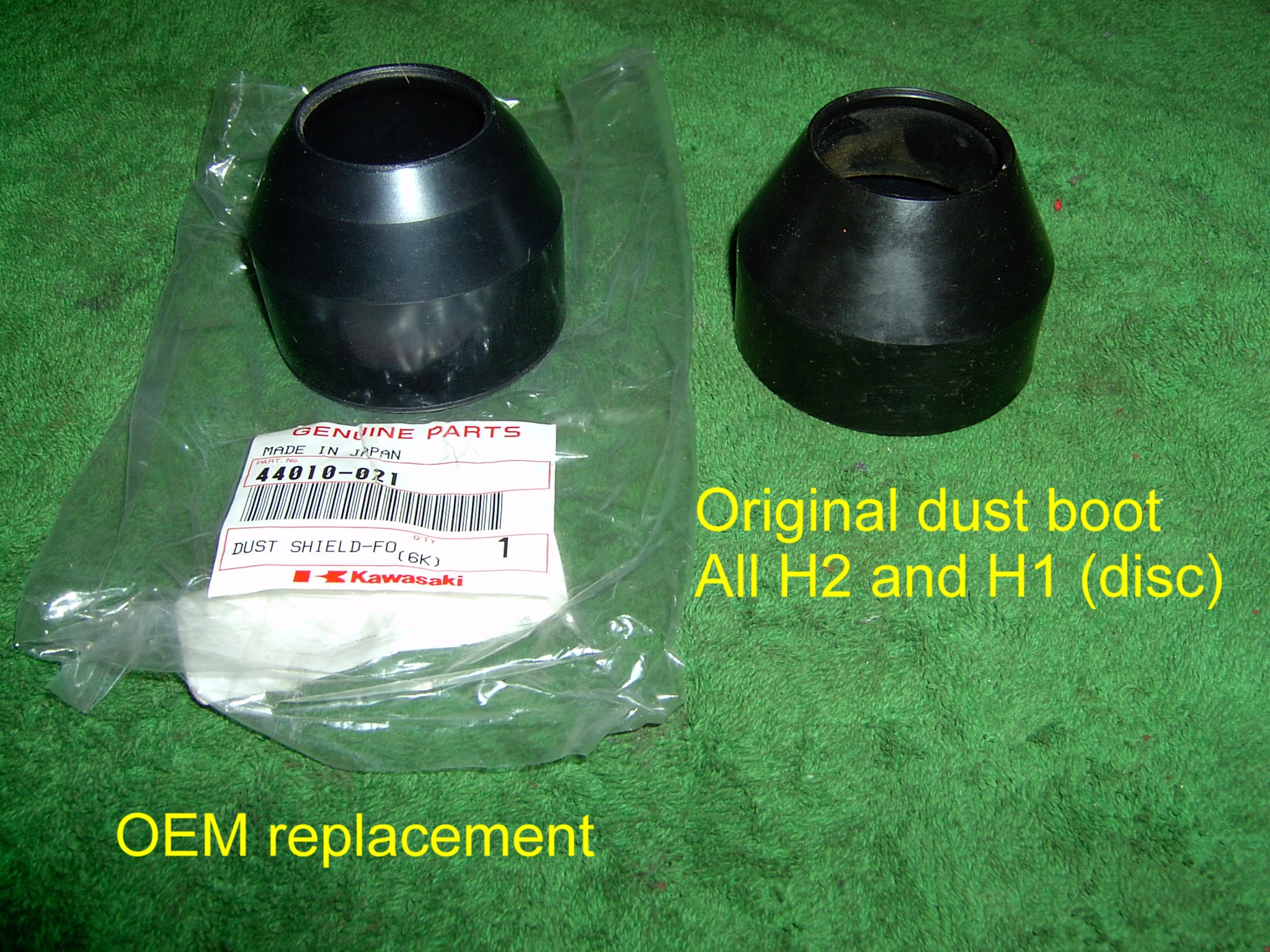

Dust Covers
